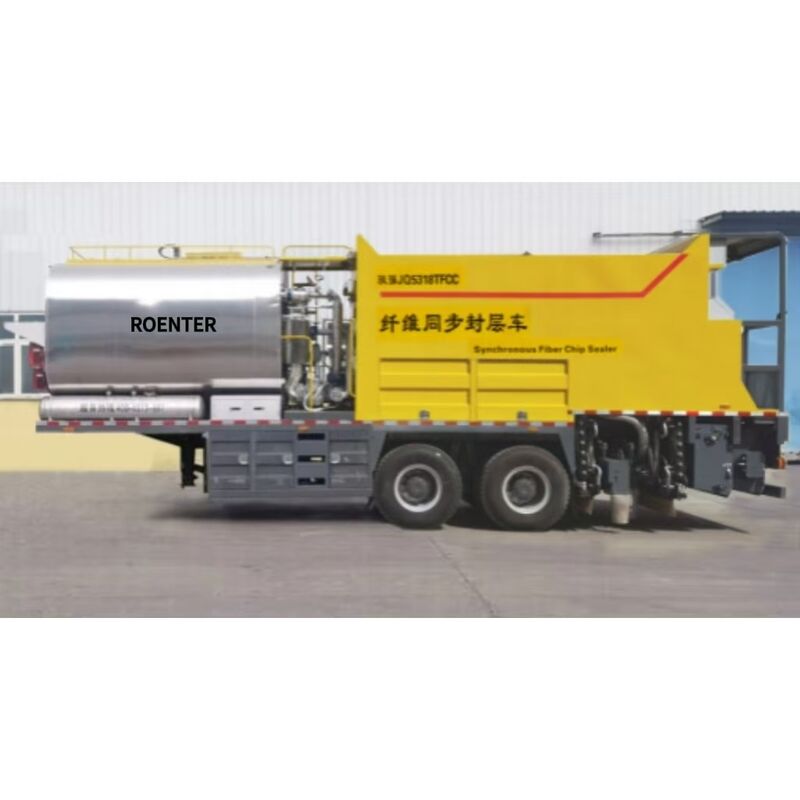

Semi-Trailer Fibre Chip Sealer
I. Application of equipment
This Semi-Trailer Fibre Chip Sealer is developed by our company, with independent intellectual property rights of special equipment (a total of six national patents). The equipment adds asphalt double-row spraying and fiber spraying structure on the basis of ordinary synchronous sealing vehicle, and is used for synchronous crushed stone sealing process in asphalt pavement wearing layer, semi-rigid pavement and white to black pavement stress absorbing layer, high-speed fine anti-skid layer, bridge deck waterproof layer and lower sealing layer. The machine, electricity and liquid integration operation is achieved. The product is simple to operate, reliable in quality and convenient to maintain. The product technology has reached the world advanced level.
| Technical parameters | ||
| NO. | Name | Values |
| 1 | Model | ROE812TFC-TS40 |
| 2 | Auxiliary engine model | Weichai WP4.1G100E311 |
| 3 | Auxiliary power | 100 horsepower |
| 4 | Distribution width | 4000mm |
| 5 | Stone grain size | 3~25mm |
| 6 | Asphalt tank capacity | 8m3 |
| 7 | Hopper capacity | 12m3 |
| 8 | Tractor Head | Customer self-purchase or purchasing |
| 9 | Working speed | 3~5km/h |
| 10 | Asphalt distribution | 0.2~3.0kg/㎡ |
| 11 | Sprinkling medium | Base asphalt, modified asphalt, dilute asphalt, emulsified asphalt, rubber asphalt |
| 12 | Fiber length | 30,60,120mm |
| 13 | Fiber spread | 5~160g/㎡ |
| 14 | Unladen weight | 21000kg |
| 15 | Full load weight | 47000kg |
| 16 | Size | Length × width × height =11000×2520×4000mm |
III. Processing advantages
1. Products are cost-effective
The product after many engineering construction improvement, stable operation, reliable performance, easy operation and maintenance, cost-effective.
2. A New Fiber Shear System
Adopt new fiber shearing system upgraded many times, add eddy current blowing system, it has the advantages of high construction efficiency, accurate measurement, convenient operation, low maintenance frequency, small asphalt pollution, long component life, etc.
3. Good asphalt spreading effect
Unique spray arm design and intelligent control, and the use of imported asphalt pump, asphalt spraying precision is high, spraying effect is good.
4. The crushed stones are evenly distributed
Spreading system adopts double spiral distributor to ensure the uniformity of stone spreading. The unique spreader arrangement makes the slope and inclination of the road surface have little influence on the spreading amount and width of the spreading system;
5. Strong construction adaptability
The equipment has special hopper, reasonable gravity, stable and reliable, strong adaptability; can be applied to curve, bridge and other conditions of construction, unique feeding system can be spread preheated stone, emery, etc.
6. High degree of automation
All operations can be completed in the cab, the operation is more humanized, with real-time cab monitoring system and automatic operation panel; set up standby manual operation panel, emergency operation;
| Product configuration | |||||
| NO. | Name | Brand | Quantity | Manufacturers | Remark |
| 1 | Asphalt pump | Johnson | 1 | Belgium | |
| 2 | Heat transfer oil pump | Johnson | 1 | Belgium | |
| 3 | Auxiliary engine | Weichai | 1 | domestic | |
| 4 | Solenoid valve | AirTAC | 1 | domestic | 1 set |
| 5 | Controller | Shuobo | 1 | domestic | 1 set |
| 6 | Touch screen | MCGS | 1 | domestic | |
| 7 | Low voltage control element | Schneider | 1 | Germany | 1 set |
| 8 | Burner | Liya Lu | 2 | Italy | |
| 9 | Inverter | Mean well | 2 | Taiwan | |
| 10 | Amplifying plate | 3C | 2 | US | |
| 11 | Load sensing pump | Saul Danvers | 1 | US | |
| 12 | Gerotor motor | Xinfa | 1 | domestic | |
| 13 | Gear pump | Bomke | 1 | domestic | |
| 14 | Gerotor motor | Saul Danvers | 7 | US | |
| 15 | Piston motor | Dagang Yining | 1 | domestic | |
| 16 | Hydraulic cylinder | Stevie | 8 | domestic | |
| 17 | The lifting hydraulic cylinders | Kone | 1 | domestic | |
| 18 | Solenoid directional valve | Huade | 7 | domestic | |
| 19 | Integrated valve | HydraForce | 1 | US | |
| 20 | Shearing unit | Junqiang | 32 | domestic | |
